Schema Builder — UI Component Reference

App Version: 2.2.0 | Codebase Root: SchemaBuilder/meta_configurator/src/

This page maps every visible UI element in the Schema Builder to its feature name, description, and primary codebase module. All relative paths are from SchemaBuilder/meta_configurator/src/.

Schema Mode — UI Component Map

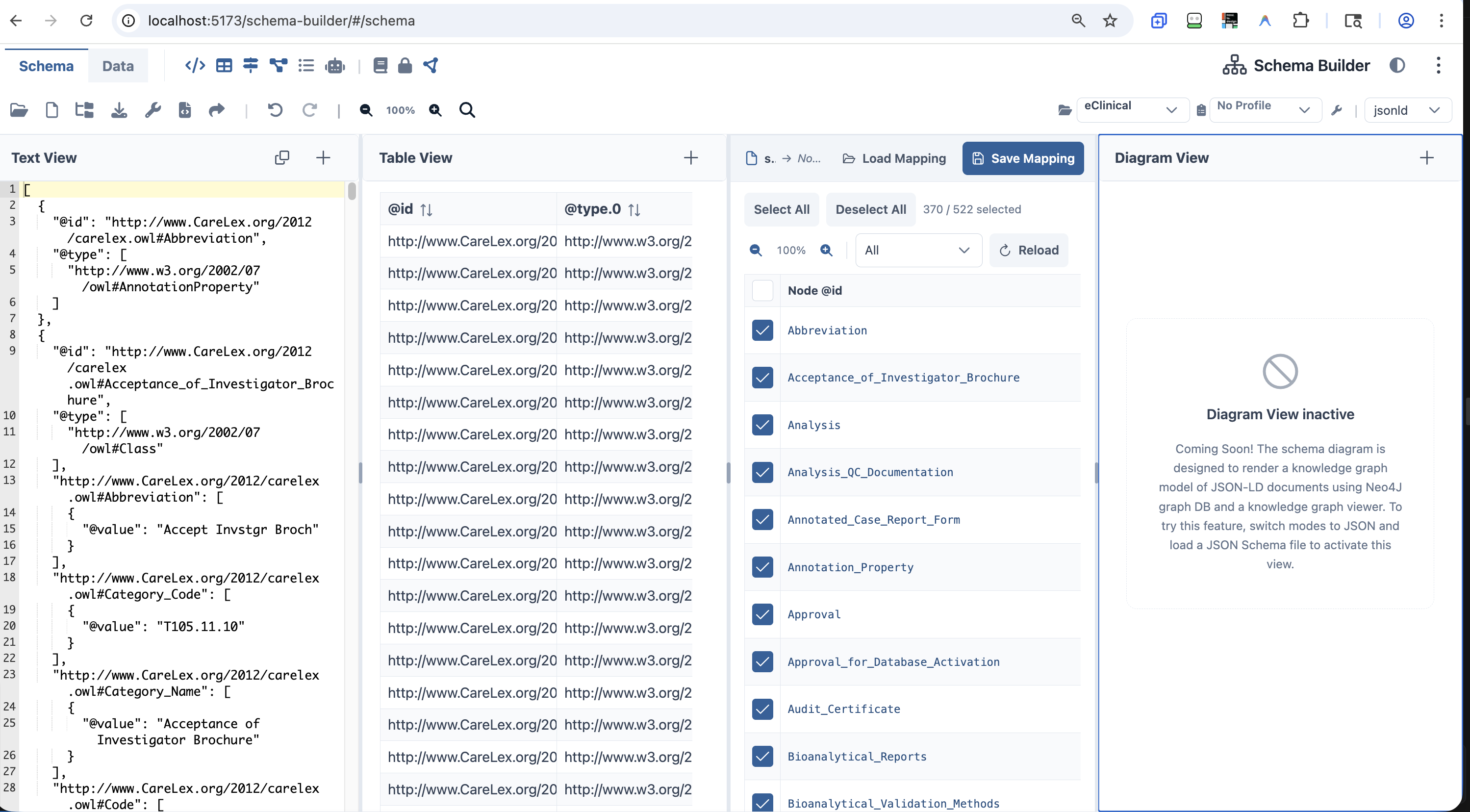

Schema Builder — Schema Mode with Text View, GUI View, Table View, and Mapper View panels open

#	Icon / Element	Tooltip / Label	Description	Primary Module(s)
1	Schema tab	—	Switches to Schema Editor mode	`components/toolbar/ModeSelector.vue`, `store/sessionMode.ts`
2	Data tab	—	Switches to Data Editor mode	`components/toolbar/ModeSelector.vue`
3	`│` Divider	—	Visual separator between mode tabs and panel icons	`components/toolbar/TopToolbar.vue`
4	`</>` Code icon	Show/Hide Text View	Toggles the Text View (Ace Editor) panel	`components/panels/code-editor/CodeEditorPanel.vue`
5	`⊞` Table icon	Show/Hide Table View	Toggles the Table View (list analysis) panel	`components/panels/list-analysis/ListAnalysisPanel.vue`
6	`⚑` Signs-post icon	Show/Hide Mapper View	Toggles the Mapper View panel	`components/panels/mapper/MapperPanel.vue`
7	`⊡` Diagram icon	Show/Hide Diagram View	Toggles the Diagram View panel	`components/panels/schema-diagram/SchemaDiagramPanel.vue`
8	`☰` List icon	Show/Hide GUI View	Toggles the GUI View (form editor) panel	`components/panels/gui-editor/GuiEditorPanel.vue`
9	`🤖` Robot icon	Show/Hide AI Prompts View	Toggles the AI Prompts panel	`components/panels/ai-prompts/AiPromptsPanel.vue`
10	`│` Separator	—	Visual separator before schema-specific controls	—
11	`📖` Book icon	Show/Hide Documentation View	Toggles the Documentation View panel	`components/panels/documentation/DocumentationPanel.vue`
12	`🔒` Lock icon	Enable/Disable advanced schema options	Toggles between simplified and full JSON Schema meta-schema	`components/toolbar/menuItems.ts`
13	`◎` Circle-nodes icon	Enable/Disable JSON-LD fields	Toggles JSON-LD fields (`@id`, `@type`, `@context`)	`components/toolbar/menuItems.ts`
14	`◐` Half-circle icon	Switch to Dark/Light Mode	Toggles `html.dark` class on `document.documentElement`	`components/toolbar/TopToolbar.vue`
15	`⋮` Three-dot icon	More options	Opens overflow menu	`components/toolbar/TopToolbar.vue`

#	Icon / Element	Tooltip / Label	Description	Primary Module(s)
1	`📂` Folder-open	Open JSON Schema…	Opens schema selection dialog (local file or URL)	`components/toolbar/menuItems.ts`, `components/toolbar/uploadFile.ts`
2	`📄` File icon	New Schema…	Dropdown: Clear Data / Infer Schema from Data	`components/toolbar/clearFile.ts`, `components/toolbar/menuItems.ts`
3	`🌲` Folder-tree	Import Schema…	Dropdown: Import JSON Schema / Import JSON-LD Schema	`components/toolbar/importFile.ts`, `components/toolbar/ImportJsonLdDialog.vue`
4	`⬇` Download	Download Schema	Downloads the current schema as a file	`components/toolbar/downloadFile.ts`
5	`🔧` Wrench	Utility…	Dropdown: Extract definitions / Resolve references / Bundle	`components/toolbar/extractSchemaDefinitions.ts`
6	`</>` File-code	Generate Source Code…	Opens code generation dialog	`components/toolbar/dialogs/`
7	`↗` Share	Share Snapshot…	Creates a shareable snapshot URL	`components/toolbar/menuItems.ts`
8	`│` Separator	—	Visual divider	—
9	`↶` Rotate-left	Undo	Undoes last edit	`data/managedData.ts` (UndoManager)
10	`↷` Rotate-right	Redo	Redoes last undone edit	`data/managedData.ts` (UndoManager)
11	`│` Separator	—	Visual divider before zoom/search	—
12	`🔍-`	Zoom out	Decreases page zoom by 10% (min 50%)	`components/toolbar/TopToolbar.vue`
13	100% label	—	Current zoom percentage	`components/toolbar/TopToolbar.vue`
14	`🔍+`	Zoom in	Increases page zoom by 10% (max 150%)	`components/toolbar/TopToolbar.vue`
15	`🔍`	Search (Ctrl+F)	Opens the Search Data & Schema dialog	`components/toolbar/SearchDialog.vue`
16	`📁` Project Switcher	—	Selects the active SureCentric project	`components/toolbar/ProjectSwitcherCombobox.vue`
17	`📋` CARD Profile	—	Selects the active CARD profile	`components/toolbar/CardProfileCombobox.vue`
18	`│` Separator	—	Visual divider	—
19	`🔧` Wrench icon	—	Opens CARD Profile Editor dialog	`components/toolbar/dialogs/CardProfileEditorDialog.vue`
20	jsonld dropdown	Active Format	Selects data format: `json`, `yaml`, `jsonld`, `xml`	`dataformats/formatRegistry.ts`

Schema Mode — View Panels

Panel	Description	Primary Module(s)
Text View	Full-text JSON/YAML/JSON-LD/XML editor with syntax highlighting, folding, and cursor-synchronised navigation	`components/panels/code-editor/CodeEditorPanel.vue`
Table View	Renders root-level arrays as a sortable, selectable data table; auto-selects single arrays	`components/panels/list-analysis/ListAnalysisPanel.vue`
Mapper View	Selects schema nodes, generates translation mappings, saves `.mapper.json` sidecar files	`components/panels/mapper/MapperPanel.vue`
Diagram View	Renders JSON Schema structure as a navigable UML-like diagram; shows overlay for JSON-LD	`components/panels/schema-diagram/SchemaDiagramPanel.vue`
GUI View	JSON Schema meta-schema-driven form editor; shows inactive overlay for JSON-LD documents	`components/panels/gui-editor/GuiEditorPanel.vue`
AI View	Sends schema context to AI model for NL-driven creation, modification, and Q&A	`components/panels/ai-prompts/AiPromptsPanel.vue`
Documentation View	Renders human-readable documentation auto-generated from the loaded JSON Schema	`components/panels/documentation/DocumentationPanel.vue`

Data Mode — UI Component Map

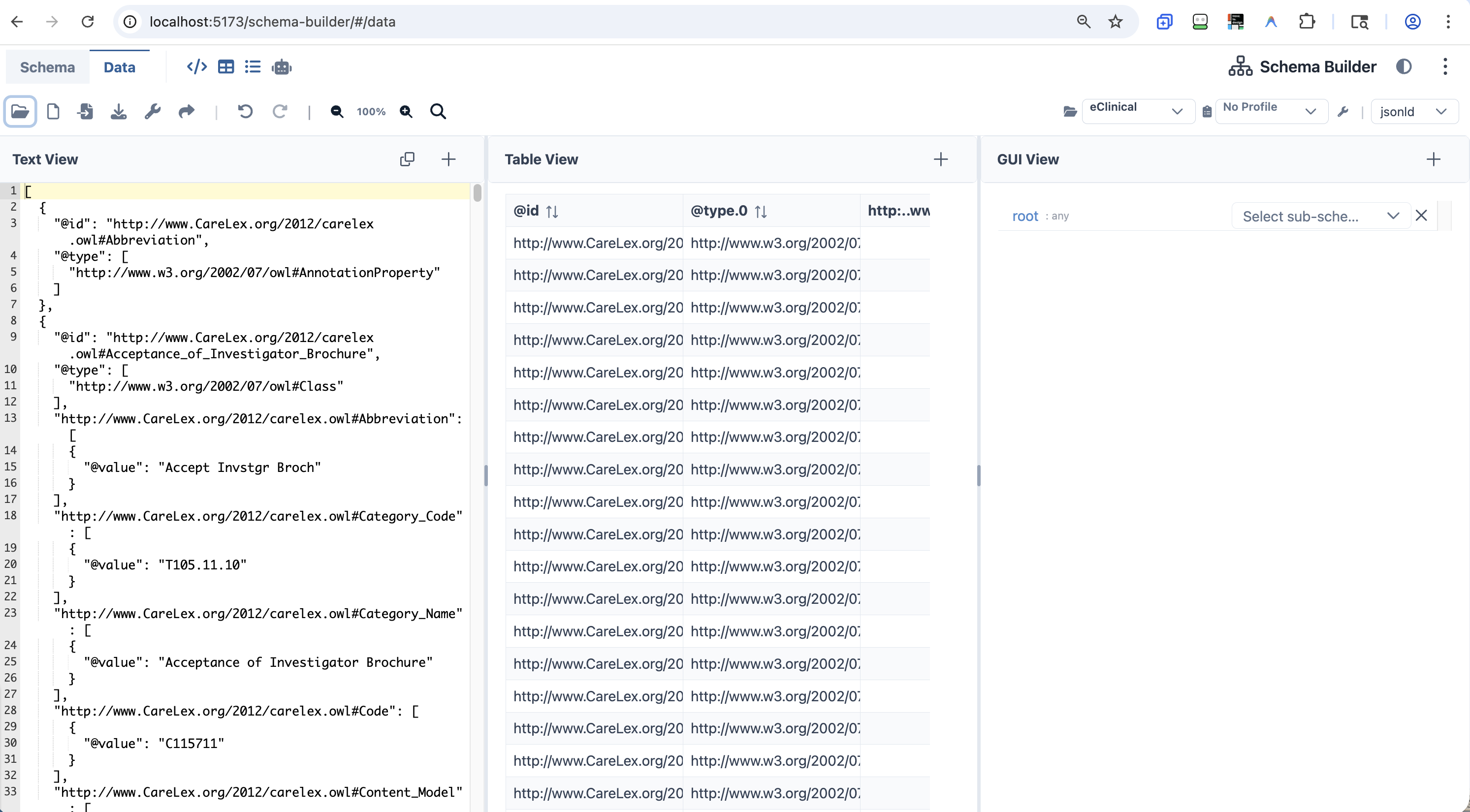

Schema Builder — Data Mode with Text View, Table View, and GUI View panels open

#	Icon / Element	Tooltip / Label	Description	Primary Module(s)
1	Schema tab	—	Switches to Schema Editor mode	`components/toolbar/ModeSelector.vue`
2	Data tab	—	Active mode indicator	`components/toolbar/ModeSelector.vue`
3	`│` Divider	—	Visual separator	—
4	`</>` Code icon	Show/Hide Text View	Toggles the Text View panel	`components/panels/code-editor/CodeEditorPanel.vue`
5	`⊞` Table icon	Show/Hide Table View	Toggles the Table View panel	`components/panels/list-analysis/ListAnalysisPanel.vue`
6	`☰` List icon	Show/Hide GUI View	Toggles the GUI View panel	`components/panels/gui-editor/GuiEditorPanel.vue`
7	`🤖` Robot icon	Show/Hide AI Prompts View	Toggles the AI Prompts panel	`components/panels/ai-prompts/AiPromptsPanel.vue`
8	`◐` Half-circle icon	Switch to Dark/Light Mode	Toggles dark mode	`components/toolbar/TopToolbar.vue`
9	`⋮` Three-dot icon	More options	Opens overflow menu	`components/toolbar/TopToolbar.vue`

#	Icon / Element	Tooltip / Label	Description	Primary Module(s)
1	`📂` Folder-open	Open Data	Opens a local data file	`components/toolbar/uploadFile.ts`
2	`📄` File icon	New Data…	Dropdown: Clear Data / Generate Data	`components/toolbar/clearFile.ts`, `createSampleData.ts`
3	`📥` File-import	Import Data…	Dropdown: Import CSV Data / Import JSON-LD	`components/toolbar/ImportJsonLdDialog.vue`
4	`⬇` Download	Download Data	Downloads the current data file	`components/toolbar/downloadFile.ts`
5	`🔧` Wrench	Utility…	Dropdown: Transform Data / Export via Template	`components/toolbar/menuItems.ts`
6	`↗` Share	Share Snapshot…	Creates a shareable snapshot URL	`components/toolbar/menuItems.ts`
7	`│` Separator	—	Visual divider	—
8	`↶` Undo	Undo	Undoes last edit	`data/managedData.ts`
9	`↷` Redo	Redo	Redoes last undone edit	`data/managedData.ts`
10–15	Zoom / Search	(same as Schema mode)	Page zoom + search dialog	`components/toolbar/TopToolbar.vue`
16–20	Project / CARD Profile / Format	(same as Schema mode)	Context controls	(same as Schema mode)

Data Mode — View Panels

Panel	Description	Primary Module(s)
Text View	Full-text data editor with AJV validation annotations	`components/panels/code-editor/CodeEditorPanel.vue`
Table View	Renders data arrays as a sortable, paginated DataTable; auto-selects single arrays	`components/panels/list-analysis/ListAnalysisPanel.vue`
GUI View	Schema-driven form editor; validates user input against schema constraints from Schema Mode	`components/panels/gui-editor/GuiEditorPanel.vue`
AI View	Sends data context to AI for generation, modification, Q&A, and format export	`components/panels/ai-prompts/AiPromptsPanel.vue`

Shared Components

Three-Dot Overflow Menu (`⋮`)

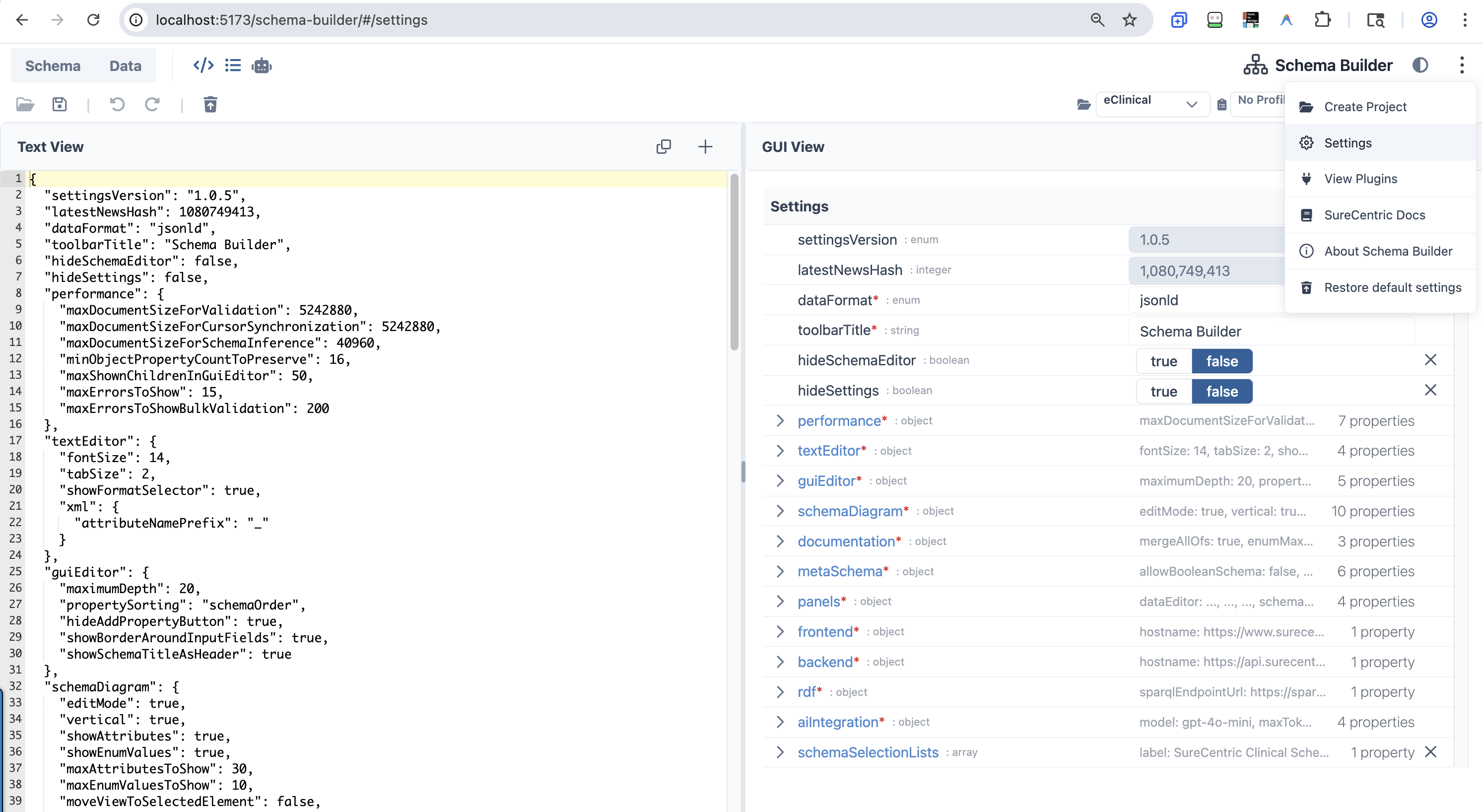

Schema Builder Three-Dot Menu and Settings View The three-dot overflow menu (left) with the Settings view open (right)

Menu Item	Icon	Description	Primary Module(s)
Create Project	`fa-solid fa-folder-open`	Opens the Create/Edit Project dialog	`components/toolbar/dialogs/CreateEditProjectDialog.vue`
Settings	`pi pi-cog`	Navigates to the Settings editor view	`views/SettingsEditorView.vue`
View Plugins	`fa-solid fa-plug`	Opens the Plugin Manager dialog	`components/toolbar/PluginManagerDialog.vue`
SureCentric Docs	`fa-solid fa-book`	External link to `https://docs.surecentric.net`	—
About Schema Builder	`pi pi-info-circle`	Shows the About dialog	`components/toolbar/TopToolbar.vue`
Restore default settings	`fa-solid fa-trash-arrow-up`	Resets all settings to defaults	`settings/defaultSettingsData.ts`

Settings

Access: ⋮ overflow menu → Settings

Source: views/SettingsEditorView.vue · settings/defaultSettingsData.ts · settings/settingsSchema.ts · settings/settingsTypes.ts

The Settings view renders Schema Builder's own configuration as a two-panel editor (Text View + GUI View) in Settings mode. Settings are persisted to localStorage as a JSON document validated against the settings JSON Schema. Changes take effect immediately.

Restore defaults: ⋮ → Restore default settings resets all values to SETTINGS_DATA_DEFAULT and reloads the app.

Root-Level Settings

Setting	Type	Default	Description
`settingsVersion`	`string`	`"1.0.5"`	Internal version — read-only
`dataFormat`	`json \| yaml \| xml \| jsonld`	`"jsonld"`	Default format in the code editor
`toolbarTitle`	`string`	`"Schema Builder"`	Title shown in the app toolbar
`hideSchemaEditor`	`boolean`	`false`	Hides the schema editor mode entirely
`hideSettings`	`boolean`	`false`	Hides the settings mode entirely

`performance` — Performance Limits

Setting	Type	Default	Description
`maxDocumentSizeForValidation`	`integer`	`5,242,880` (5 MiB)	Documents larger than this (bytes) skip AJV validation
`maxDocumentSizeForCursorSynchronization`	`integer`	`5,242,880` (5 MiB)	Documents larger than this skip panel cursor sync
`maxDocumentSizeForSchemaInference`	`integer`	`40,960` (40 KiB)	Documents larger than this are trimmed before schema inference
`minObjectPropertyCountToPreserve`	`integer`	`16`	Min property count preserved when trimming large documents
`maxShownChildrenInGuiEditor`	`integer`	`50`	Max children shown per node in the GUI Editor
`maxErrorsToShow`	`integer`	`15`	Max validation errors displayed
`maxErrorsToShowBulkValidation`	`integer`	`200`	Max errors shown during bulk validation

`textEditor` — Code Editor

Setting	Type	Default	Description
`fontSize`	`integer` (10–40)	`14`	Font size in the code editor
`tabSize`	`integer` (1–8)	`2`	Tab width in the code editor
`showFormatSelector`	`boolean`	`true`	Shows JSON / YAML / XML / JSON-LD format dropdown
`xml.attributeNamePrefix`	`string`	`"_"`	Prefix added to XML attribute names on export

`guiEditor` — Visual Editor

Setting	Type	Default	Description
`maximumDepth`	`integer` (1–20)	`20`	Max depth rendered inline; deeper nodes require click-navigation
`propertySorting`	enum	`"schemaOrder"`	`priorityOrder`: required→optional→additional. `schemaOrder`: matches schema definition order. `dataOrder`: matches data object order
`hideAddPropertyButton`	`boolean`	`true`	Hides the "Add custom property" button for schema-undefined keys
`showBorderAroundInputFields`	`boolean`	`true`	Adds a visible border around input fields
`showSchemaTitleAsHeader`	`boolean`	`true`	Shows schema `title` as a header above the field

`schemaDiagram` — Diagram View

Setting	Type	Default	Description
`editMode`	`boolean`	`true`	Click elements in the diagram to edit the schema
`vertical`	`boolean`	`true`	Renders diagram top-to-bottom (vs. left-to-right)
`showAttributes`	`boolean`	`true`	Shows property attributes in diagram nodes
`showEnumValues`	`boolean`	`true`	Shows enum values in diagram nodes
`maxAttributesToShow`	`integer`	`30`	Max attributes shown per node before truncation
`maxEnumValuesToShow`	`integer`	`10`	Max enum values shown per node before truncation
`moveViewToSelectedElement`	`boolean`	`false`	Auto-pans the diagram to the selected element
`automaticZoomMaxValue`	`number`	`1`	Max zoom level when auto-panning
`automaticZoomMinValue`	`number`	`0.5`	Min zoom level when auto-panning
`mergeAllOfs`	`boolean`	`false`	Merges `allOf` sub-schemas in the diagram

`documentation` — Documentation View

Setting	Type	Default	Description
`mergeAllOfs`	`boolean`	`true`	Merges `allOf` sub-schemas in generated docs
`enumMaxCountToShowWithoutSpoiler`	`integer`	`10`	Enum values above this count collapse behind a spoiler
`repeatMultipleOccurrencesInTableOfContents`	`boolean`	`true`	Repeated schema references all appear in the table of contents

`metaSchema` — Schema Editor Behavior

Setting	Type	Default	Description
`allowBooleanSchema`	`boolean`	`false`	Allows `true`/`false` as valid sub-schema definitions
`allowMultipleTypes`	`boolean`	`false`	Allows a property to have multiple types (e.g., `string \| number`)
`objectTypesComfort`	`boolean`	`true`	Forces consistent types for `default`, `const`, `enum`, `examples` to enable auto-type-selection
`markMoreFieldsAsAdvanced`	`boolean`	`true`	Hides less-common schema fields behind an "Advanced" toggle
`showAdditionalPropertiesButton`	`boolean`	`false`	Shows a button to add properties outside the schema definition
`showJsonLdFields`	`boolean`	`true`	Shows JSON-LD fields (`@context`, `@type`, `@id`) in the schema editor

`panels` — Layout Configuration

Setting	Type	Default	Description
`dataEditor`	`Panel[]`	`[textEditor 33%, tableView 33%, guiEditor 33%]`	Panels shown in Data Mode
`schemaEditor`	`Panel[]`	`[textEditor 25%, tableView 25%, mapperView 25%, schemaDiagram 25%]`	Panels shown in Schema Mode
`settings`	`Panel[]` (read-only)	`[textEditor 50%, guiEditor 50%]`	Panels shown in Settings Mode — cannot be changed in the UI
`hidden`	`string[]`	`["debug", "test"]`	Panel types hidden from toolbar toggles. Valid values: `aiPrompts`, `debug`, `test`, `schemaDiagram`, `guiEditor`, `textEditor`, `tableView`, `documentation`

`aiIntegration` — AI API

Setting	Type	Default	Description
`model`	`string`	`"gpt-4o-mini"`	Model ID — supports OpenAI, Perplexity Sonar, OpenRouter `provider/model`, and custom deployments
`maxTokens`	`integer`	`5000`	Max tokens per AI request
`temperature`	`number` (0.0–1.0)	`0.0`	Sampling temperature; `0` = fully deterministic
`endpoint`	`string` (URI)	`"https://api.openai.com/v1/"`	OpenAI-compatible API endpoint (Azure OpenAI, SureLLM, Ollama, OpenRouter all work)

`rdf` — Ontology / SPARQL

Setting	Type	Default	Description
`sparqlEndpointUrl`	`string` (URI)	`"https://sparql.carelex.org"`	SPARQL endpoint for ontology lookups and NCBO autocomplete

`frontend` / `backend` — Host Configuration

Setting	Type	Default	Description
`frontend.hostname`	`string` (URI)	`"https://www.surecentric.net"`	Frontend server hostname — used in link generation
`backend.hostname`	`string` (URI)	`"https://api.surecentric.net"`	Backend API hostname

`schemaSelectionLists` — Schema Picker

Setting	Type	Default	Description
`schemaSelectionLists`	`SchemaSelectionList[]`	SureCentric eClinical entry	Groups shown in the schema selection dialog
`[].label`	`string`	`"SureCentric Clinical Schemas"`	Group label shown in the dialog
`[].schemas`	URI or `SchemaEntry[]`	eClinical/CareLex entry	Remote list URL or inline schema entries
`[].schemas[].label`	`string`	`"eClinical Content Model (CareLex)"`	Schema display name
`[].schemas[].url`	`string` (URI)	GitHub raw URL to `eclinical-v1-test.jsonld`	Schema source URL

Dialogs

Dialog	Trigger	Description	Primary Module(s)
Schema Selection	Open JSON Schema…	Select from schema store, URL, or file upload	`components/toolbar/fetchExampleSchemas.ts`
Search	🔍 icon / Ctrl+F	Full-text search across data and schema with result navigation	`components/toolbar/SearchDialog.vue`
Import JSON-LD	Import JSON-LD menu item	Multi-step JSON-LD import with merge/replace options	`components/toolbar/ImportJsonLdDialog.vue`
Plugin Manager	View Plugins menu item	Lists registered plugins with activate/deactivate toggles	`components/toolbar/PluginManagerDialog.vue`
Create/Edit Project	Create Project menu item	Creates or edits a SureCentric project	`components/toolbar/dialogs/CreateEditProjectDialog.vue`
CARD Profile Editor	🔧 icon (profile combobox)	Edits CARD profiles: schemas, datasets, plugins, visualization apps	`components/toolbar/dialogs/CardProfileEditorDialog.vue`

Panel Infrastructure

Component	Description	Module
Panel Type Registry	Central `Map<name, definition>` driving icon rendering and toggle logic	`components/panels/panelTypeRegistry.ts`
Panel Type Definitions	Declares icon, label, supported modes, and component factory for each panel type	`components/panels/defaultPanelTypes.ts`
Combined Editor	Orchestrates the Splitter layout with dynamically-toggled panels	`components/CombinedEditorComponent.vue`
Panel Settings	Per-panel info/help popover rendered on each panel header	`components/panels/shared-components/PanelSettings.vue`

Theming & Styling

UI Framework Stack

Technology	Version	Purpose
TailwindCSS	`^3.3.2`	Utility-first CSS; `darkMode: 'class'` in `tailwind.config.js`
PrimeVue	`^4.2.5`	Vue 3 component library — registered globally in `main.ts`
@primevue/themes	`^4.2.5`	PrimeVue Lara theme preset — customized with SureCentric brand palette
PrimeIcons	`^7.0.0`	`pi pi-*` icon classes — used in overflow menu and panel settings
FontAwesome	`^6.5.2`	Primary toolbar icon set — registered in `fontawesome.ts`
Ace Editor	bundled via vue3-ace-editor	Text/code editor component

PrimeVue Lara Theme — SureCentric Brand Palette

The theme is defined in main.ts using definePreset() to extend the Lara base preset.

SureCentric Blue (#29619B, HSL 211°, 58%):

Token	Hex
`50`	`#ebf2fa`
`100`	`#d7e5f4`
`200`	`#aecbea`
`300`	`#7eacdd`
`400`	`#4a8acf`
`500` (brand primary)	`#29619B`
`600`	`#225081`
`700`	`#1b3f65`
`800`	`#132d49`
`900`	`#0d1e30`
`950`	`#07121c`

This palette is applied in two places:

PrimeVue preset — maps to semantic.primary and colorScheme.light/dark
Tailwind config — remaps colors.indigo to the same palette

Dark Mode

Mechanism	Details
Toggle trigger	`TopToolbar.vue` → `toggleDarkMode()` toggles `html.dark` class on `<html>`
Persistence	`localStorage` key `sc-color-mode` (`'dark'` or `'light'`)
PrimeVue selector	`darkModeSelector: '.dark'` in theme options (`main.ts`)

Schema Mode — UI Component Map​

Top Toolbar Row (Row 1)​

Bottom Toolbar Row (Row 2)​

Schema Mode — View Panels​

Data Mode — UI Component Map​

Top Toolbar Row (Row 1)​

Bottom Toolbar Row (Row 2)​

Data Mode — View Panels​

Shared Components​

Three-Dot Overflow Menu (⋮)​

Settings​

Root-Level Settings​

performance — Performance Limits​

textEditor — Code Editor​

guiEditor — Visual Editor​

schemaDiagram — Diagram View​

documentation — Documentation View​

metaSchema — Schema Editor Behavior​

panels — Layout Configuration​

aiIntegration — AI API​

rdf — Ontology / SPARQL​

frontend / backend — Host Configuration​

schemaSelectionLists — Schema Picker​

Dialogs​

Panel Infrastructure​

Theming & Styling​

UI Framework Stack​

PrimeVue Lara Theme — SureCentric Brand Palette​

Dark Mode​
