Schema Builder Plugin System

Schema Builder is designed as a platform-agnostic, open plugin system. Plugins are self-contained ES modules that can be loaded at runtime — no rebuild required. The architecture is intentionally decoupled: Schema Builder exposes a stable interface, and plugins talk to it through a declared contract.

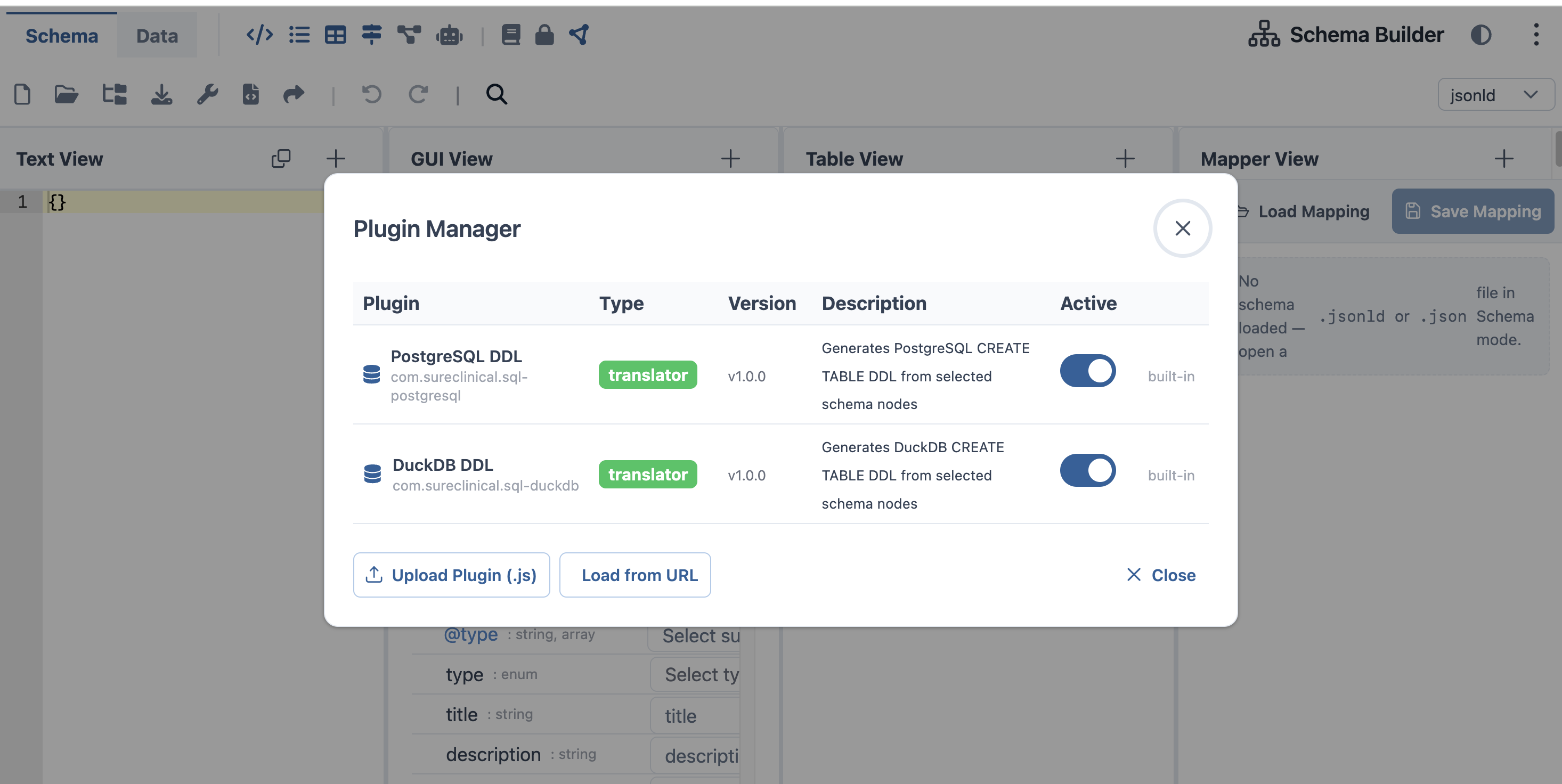

Schema Builder Plugin System User Interface

Design Philosophy

Schema Builder is not just a UI tool. It is a centralized, extensible schema services platform that can operate as:

A standalone JSON-LD schema workbench
An embedded service inside SureClinical's web client (iframe)
A headless translation service invoked programmatically
A plugin host for services written in Node.js, Python, Java Spring Boot, or any platform that produces an ES module

Plugins run either directly inside Schema Builder (in-browser ES module execution) or via a sandboxed runtime such as OpenSandbox for isolation, multi-tenancy, and cross-platform plugin hosting.

Plugin Types

Type	Hook	Purpose
`translator`	`translate(rows, sourceUri)`	Converts Mapper View rows into an output format: SQL DDL, OWL, CSV, etc.
`exporter`	`export()`	Exports the entire active schema in a custom format
`panel`	`panelComponent` (Vue)	Adds a new full panel to the Schema Builder UI
`importer`	`import()`	Loads and merges an external schema source
`validator`	`validate(schema)`	Runs custom validation rules, returns annotated issues

Plugin Contract

Every plugin implements SchemaBuilderPlugin:

interface SchemaBuilderPlugin {
  // Required by all types
  id: string;           // Reverse-DNS: 'com.acme.my-plugin'
  name: string;
  description: string;
  pluginType: 'translator' | 'exporter' | 'panel' | 'importer' | 'validator';
  version: string;      // semver
  author: string;
  icon: string;         // FontAwesome class, e.g. 'fa-solid fa-database'

  // TRANSLATOR
  formatId?: string;    // key shown in Mapper View format dropdown
  translate?: (rows: MappingRow[], sourceUri: string) => string | Promise<string>;

  // PANEL
  panelComponent?: Component;         // Vue 3 component
  supportedModes?: SessionMode[];
  panelIcon?: string;
  panelLabel?: string;

  // IMPORTER
  import?: () => Promise<string | null>;  // returns JSON-LD string or null

  // VALIDATOR
  validate?: (schema: object) => Promise<ValidationIssue[]>;

  // Lifecycle (all types)
  onActivate?: () => void;
  onDeactivate?: () => void;
}

interface ValidationIssue {
  path: string;       // JSON Pointer path, e.g. '/entities/0/@id'
  severity: 'error' | 'warning' | 'info';
  message: string;
}

Plugin Loading

Plugins are loaded at runtime via dynamic ES import(). Two loading paths are supported:

From URL

await loadPluginFromUrl('https://cdn.example.com/my-plugin.js');
// or local dev server:
await loadPluginFromUrl('http://localhost:4000/dist/my-plugin.js');

The module must export a valid SchemaBuilderPlugin as its default export. Schema Builder validates the contract before registration — invalid plugins are rejected with a descriptive error.

From File

// User selects a .js file via the Plugin Manager dialog
await loadPluginFromFile(file); // File object from <input type="file">

The file is wrapped in a Blob URL, imported dynamically, then the URL is immediately revoked to prevent memory leaks.

Plugin Manager UI

The Plugin Manager is opened via the ⋮ overflow menu → View Plugins. It shows all registered plugins with type, version, description, and an active toggle. Built-in plugins cannot be removed. User-loaded plugins can be toggled or removed.

Plugin Registry

The registry is a reactive Vue 3 ref wrapping a Map<id, plugin>:

// Get all registered plugins (reactive — use in Vue templates)
const all = pluginRegistry.getAll; // computed<SchemaBuilderPlugin[]>

// Find a translator for a given format
const plugin = pluginRegistry.getTranslator('sql-duckdb');

// Check if a translator exists (used to enable/disable Export button)
const canExport = pluginRegistry.hasTranslator('sql-postgresql');

// Manual registration (for programmatic use)
pluginRegistry.register(myPlugin);
pluginRegistry.unregister('com.acme.my-plugin');

Panel auto-wiring: When a panel plugin is registered, it is automatically added to the Schema Builder toolbar — no manual wiring required. The plugin's panelComponent, panelLabel, and panelIcon are wired into the panel registry on register().

Built-in Plugins

Schema Builder ships three built-in plugins (registered at app bootstrap):

Plugin ID	Type	Description
`com.sureclinical.sql-postgresql`	`translator`	Generates PostgreSQL `CREATE TABLE` DDL with FK inference
`com.sureclinical.sql-duckdb`	`translator`	Generates DuckDB-compatible DDL (VARCHAR, DOUBLE, TIMESTAMP)
`com.sureclinical.seed-data-generator`	`translator`	Generates realistic `INSERT INTO` SQL using faker.js with a seeded RNG

DDL Generation

Both SQL plugins follow the same two-phase algorithm:

Group phase — Mapper View rows with targetType === 'TABLE' or nodeType === 'owl:Class' start a new table. Subsequent non-TABLE rows become columns.
FK inference phase — Columns with targetType === 'URI/IRI' or nodeType === 'owl:ObjectProperty' are checked against known table names. If a match is found, a REFERENCES constraint is emitted automatically.

Each table always receives an iri TEXT NOT NULL PRIMARY KEY column derived from @id.

Seed Dataset Generator

The Seed Dataset Generator uses @faker-js/faker with faker.seed(42) for reproducible output — the same schema always produces identical INSERT statements.

Two-pass generation: Pass 1 pre-generates all IRIs for every table; Pass 2 emits INSERTs with round-robin FK references.
Row count control: Set a TABLE row's notes field to a number to override the default of 50 rows (max: 10,000).
Value selection: the plugin reads dataType, nodeType, and column name to pick the most semantically appropriate faker.js method.

Sandboxed Execution — OpenSandbox

For multi-tenant deployments, plugin isolation, or hosting plugins authored on non-JavaScript platforms, Schema Builder supports sandboxed plugin execution via OpenSandbox.

OpenSandbox provides a lightweight, browser-compatible sandbox runtime that:

Isolates plugin code from the host application namespace
Enforces resource limits and capability restrictions
Supports loading plugins from CDN, private registries, or local file servers
Enables future plugin execution on server-side runtimes (Node.js, Deno, edge workers)

Sandboxed plugins communicate with Schema Builder through the same SchemaBuilderPlugin interface — the sandbox is transparent to the plugin author.

Writing a Plugin

A minimal translator plugin:

// my-csv-exporter.js
export default {
  id: 'com.acme.csv-exporter',
  name: 'CSV Exporter',
  description: 'Exports Mapper View rows as CSV',
  pluginType: 'translator',
  version: '1.0.0',
  author: 'Acme Corp',
  icon: 'fa-solid fa-file-csv',
  formatId: 'csv',

  translate(rows, sourceUri) {
    const selected = rows.filter(r => r.selected);
    const header = 'name,type,nullable\n';
    const body = selected
      .map(r => `${r.name},${r.targetType},${r.nullable ?? true}`)
      .join('\n');
    return header + body;
  },

  onActivate() {
    console.log('CSV Exporter activated');
  },
};

Load it in the Plugin Manager or programmatically:

await loadPluginFromUrl('https://my-cdn.example.com/csv-exporter.js');
// or via file upload in Plugin Manager UI

Once registered, csv appears in the Mapper View format dropdown and the Export button becomes active.

Platform Notes

Platform	Approach
Node.js	Build as an ES module (`"type": "module"` in package.json), serve via local dev server or CDN
Python	Use py2js or a Python-to-ES-module bridge; alternatively expose a REST endpoint and write a thin JS adapter plugin that calls it
Java Spring Boot	Expose a REST endpoint; write a JS `importer` or `translator` plugin that calls it via `fetch()`
Sandboxed	Any platform — wrap in OpenSandbox runtime for isolation and cross-origin safety

Plugin Lifecycle

loadPluginFromUrl / loadPluginFromFile
        │
        ▼
validatePlugin()  ←── throws if id/name/pluginType/version/author missing
        │
        ▼
pluginRegistry.register(plugin)
        │
        ├── onActivate() called
        ├── panel plugins → auto-wired into panelTypeRegistry
        └── translator plugins → available in Mapper View dropdown

        ···  (plugin is active)  ···

pluginRegistry.unregister(id)
        │
        ├── onDeactivate() called
        └── panel plugins → removed from panelTypeRegistry
